We've developed an interactive website to showcase the Yellowbox system, click through the tabs above to look through our Technology, Specification Details, Sustainability and Security Information, and Case Study. Enjoy!
Your smart locker system made simple
Within today's workplace, lockers are an enabler of flexible working and hot desking policies, providing a space for employees to call their own when in and out of the office.
Although managing traditional lockers quickly becomes an unsustainable practice, requiring multiple full-time facility managers (1 full-time FM per 500 lockers) to undertake manual locker onboarding and ongoing management, e.g. handing out keys/codes, tracking, battery replacements, locksmith call outs, support, locker requests and trying to understand actual utilisation. All to uphold an archaic key or code locker opening user experience.
Yellowbox is your smart locker system, made simple. We solve locker management and access for large workplaces.
Flexible Locker Access: Supports RFID cards, Microsoft Teams and touchscreen interface for secure and seamless user access.
Automating Locker Management: Synced onboarding and offboarding of users. Automated emails for: 'Campers' (users not using their locker), hot lockers (reminders on booking ending), welcoming onboarded users, parcel pickup and asset exchange.
Incognito Day 1, Full System Day 2: Don't get blocked by security. No PII data required on Day 1 through Incognito Mode (No User Data, Off-Network). Ability to turn on full user mode once security review is complete.
Fit for Purpose
Multiple access methods, including existing RFID cards, Yellowbox App, Touchscreen Kiosk, Company App, Microsoft Teams, PIN code and Mobile Credentials (Apple/Google Wallet)-

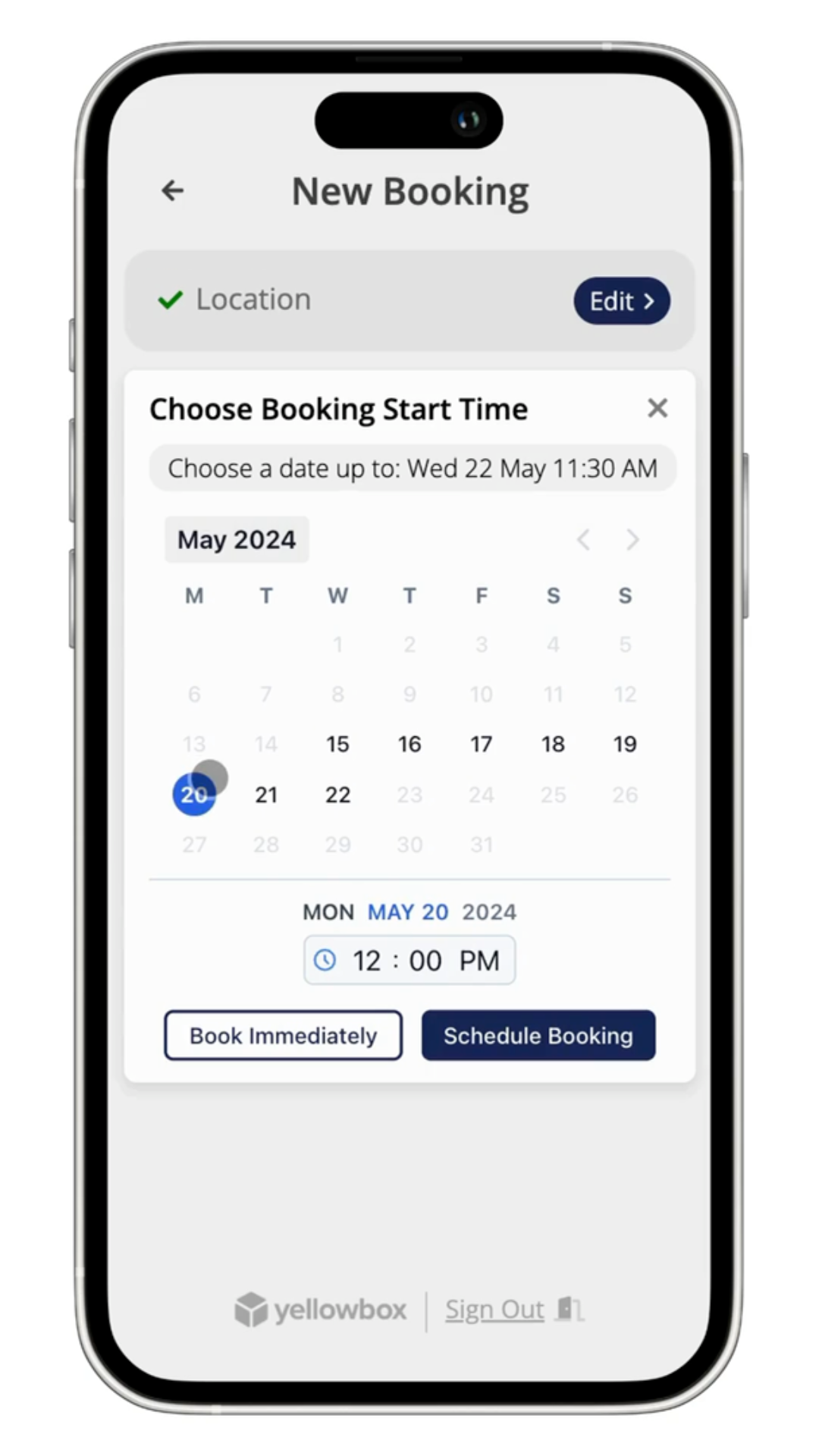

Flexible hot locker and booking in advance settings, limit booking durations
-
Physically flexible locker system (wireless or wired lock, off-network, no servers)
-
Self-serve and automated user onboarding, with automated email instructions (if required) and 24/7 support
-
Automated ongoing remote management, configurable to tenants to manage their own lockers
-
Saves on over 80% of locker management time and 30-40% of floor space required (from less lockers required)
-
Cloud-based system, future updates and feature roll outs each month
-
Integrations with your current and future environment, e.g. with the building access method you use now and into the future
-
Reliable (>99.5% uptime), secure and globally scalable and managed, ISO27001.
Recommended Mode
Incognito Mode (No Personal Data, Off Your Network)
Completely anonymous, ensuring no PII (personally identifiable information) data required to run the system. No storage of RFID card numbers/credentials, system stores a protected hash. No involvement with the client network, by using Yellowbox's 'off-network' solution through a Yellowbox 4G router.
Seamless self-serve access through existing RFID swipe cards on touchscreen kiosk. System stores an anonymous User ID and protected hash. Additional PIN code access for users that forgot their card for the day.
Remote management through dashboard with live audit trail and remote access. Flexibility to still enforce rules such as hot lockers and only one locker per user. 24/7 management support through the Yellowbox dashboard and feature updates.
Future-proof, with ability to seamless transition to non-anonymous mode post security review.
Yellowbox's Commitment to Sustainability
Yellowbox has been selected as the go-to solution for multiple Net-Zero Buildings globally.
Yellowbox has achieved Carbon Neutrality status under NetNada certification. Yellowbox carbon measurements take into account their scope 1, 2, and 3, operational and supply chain emissions. It also includes their Verra VCS offsets, ensuring that they take a holistic responsibility for their impact on the planet.
Yellowbox carbon emissions are updated/captured live, so as they grow, they adjust their sustainability strategies accordingly to minimise the impact on their clients and the planet.
Energy Consumption: Yellowbox smart locks are designed for energy efficiency, requiring minimal power to operate. Additionally, our Kiosk can be optimised to enter low-power mode when idle, further reducing energy consumption.
Modular Design for Easy Repair: Our locks are modular so they can easily be replaced, extending the lifespan of the product and reducing waste.
Material: Yellowbox’s smart locks are made from durable, recyclable steel, supporting a circular economy while eco-friendly coatings and non-toxic materials ensure minimal environmental impact.
Leading software and self-serve access methods
Seamless self-serve locker access
Staff can access their locker with their existing RFID card, Yellowbox App, Microsoft Teams, HID Mobile Access, Apple Wallet or through the Touchscreen (PIN).
PIN Code re-access to store phone and swipe card in locker, for post shower locker access.
5,058,382
4.9
- Self-serve book and open locker
- Auto-scans for closest locker bank, where on a floor with multiple locker banks
- Users can request a locker if lockers are at maximum capacity
- Team / Shared lockers
- Flexible settings, e.g. multiple bookings, charging users, set max length of bookings, auto end bookings at a certain time
- 9/10 user experience rating from hundreds of thousands of users
- Customisable with company logo and colour scheme
- Integration with Company App or in Web App form
Use Cases
Save hours in locker management
Day Lockers – Hot Locker Rule Setting
Create custom booking durations with the option for early exit. Notifications or emails will be sent to the user prior to booking end.
Create User Groups
Create custom user groups which may be granted access to multiple lockers or receive special permissions/rules.
Custom Locker Types for User Groups
Create your own locker type by selecting the base-use method (permanent, day locker, team locker, confidential waste and parcel), the booking limit, user group, and custom name for your locker type.
Management Dashboard
The dashboard is our desktop optimised management and analytics tool which provides a complete suite of management and monitoring tools for your location(s), locker settings and users.
- Remote open and manage lockers
- Usage graphs and reports
- Automated upload of users
- Allocate lockers to users/groups
- Auto-email instructions to users
- Record of live events and audit trail
- Manager support and help desk
- Customise system and app features - add company logo, change colours
- Set height accessible lockers
- Manage user locker requests
- Configure custom locker types - temporary/permanent lockers, team lockers, hot lockers, parcel lockers, asset exchange lockers
- Behavioural insights - view hoarding and camping behaviour
Yellowbox Locker System Specification Sheet
Yellowbox Smart Locker System with Wired Locks, Kiosk, Access and Management Software.
Wired Smart Lock
The Yellowbox wired lock provides a battery-free experience for management. The lock is incredibly secure and robust, with an anti-force performance of 350kgF. Emergency latch for mechanical override.
Optional Device Charging Add-On, for USB-A and USB-C device charging and LED light. The Add-On can be fitted on post-installation of the Wired Smart Lock.
Model: YB-WIRED-02
Power Supply: 100-240v GPO
Standby Consumption per Lock: 1.2mW
Active Consumption per Lock (during unlock only): 28W
Working Temperature: -40°C ~ +75°C
Working Humidity: 5% - 95%RH
Anti-Force Performance: 350kgF
Compliance: FCC, CE, RCM, RoHS, ISED
Warranty: 24 months
Dimensions
Body: H 100 x W 133 x D 18mm
Striker: H 20 x W 34.5 x D 25mm
Wired Smart Lock with Device Charging and LED Light Add-On
Device Charging Add-On, for USB-A and USB-C device charging and LED light. Yellowbox leads the market in device charging efficiency, as the first device charging module able to charge laptops and fast-charge mobile phones.
The Add-On is connected to an additional Charging Board (YB-101b) to facilitate device charging.
Model: YB-WIRED-02 and YB-USB-01
Input Voltage: 5V, 4A (20W)
Output Voltage: 5V, 4A (20W)
Working Temperature: -20°C ~ +60°
Compliance: FCC, CE, RCM, RoHS, ISED
Warranty: 24 months
Dimensions
Body (Including Add-On): H 100 x W 180 x D 35mm
Touchscreen Kiosk
The Yellowbox Touchscreen Kiosk creates a custom guided user experience, compatible with your RFID and Mobile credentials.
Options include Row Selection, Custom Branding, Custom Text, Visitor Bookings, Showing Locker Availability, Showing Custom FAQ Content, Parcel Delivery, Asset Exchange.
Model: YB-KIOSK-02
Connectivity: Ethernet, Wi-Fi
Installation Details: Service locker mounted, Wall-mounted, or locker-side-mounted
System Capacity: Connection to unlimited number of locks
Standby Consumption per Kiosk: 2.7W
Active Consumption per Kiosk: 5W
Certifications: CE, UKCA, FCC, UL, KCC, RCM, RoHS, ICED
Warranty: 24 months
Lifecycle: 10 years
Dimensions
Screen: H 147 x W 239 x D 70mm
Reader: H 95 x W 70 x D 16mm
Yellowbox Access and Management Software
Access Methods:
Both Wired and Wireless Locks can be accessed via RFID cards, PIN codes through a kiosk, a mobile app, smart wallet (Apple or Google Wallet) and Microsoft Teams.
Management Dashboard:
The system should maintain audit trails, locker allocation details, and provide necessary reports offering insights into locker usage.
Automation is key—user inclusion and exclusion must sync with Active Directory. Automated emails to ‘campers’.
Additionally, the system automatically sends notifications to both admins and end users upon locker bookings, parcel bookings and asset exchange bookings, including reminders if lockers are reserved but not used.
Security and Data
Off Network
Yellowbox can supply industrial routers, so the system can run independently from your data network.
Security
Yellowbox is ISO 27001 certified with annual penetration testing.
All Google Cloud Platform services used by Yellowbox are ISO 27001 and SOC 1, SOC 2, and SOC 3 compliant with several also having ISO 27017 and ISO 27018 certifications. Amazon AWS has certification for compliance with ISO/IEC 27001:2013, 27017:2015, 27018:2019, and ISO/IEC 9001:2015.
Data Protection
All login credentials and other sensitive user data such as phone numbers and email addresses are stored in encrypted form. Yellowbox services encrypt data in transit using HTTPS and logically isolate customer data.
Privacy
Yellowbox operates globally, maintaining GDPR requirements for all users. Put simply, all users retain the right to have control over how their personal information is collected and used.
Case Study: London Stock Exchange Group
London | Netherlands | Switzerland | Romania | Poland | Philippines | Thailand
Context
The London Stock Exchange Group put out a tender for a leading smart locker system provider to support LSEG’s current and future workplaces.
LSEG had adopted flexible hybrid working practices and had four primary objectives when looking for smart locker technology (on the right).
Solution
Yellowbox has provided a flexible, future-proof and time-saving smart locker system, across LSEG’s portfolio of workplaces around the world (over 5,000 lockers deployed globally).
Staff have flexibility to use multiple access methods (mobile app, RFID card, PIN), and types of lockers (e.g. permanent, hot and team lockers). The system is future-proofed with Active Directory Integration, RFID card integrations and global management. Yellowbox saves a significant amount of time and manual processes through automated onboarding and offboarding, self-serve booking and providing intelligent features to manage utilisation.
Each workplace also uses an optimal ratio of staff to lockers, driven by data and the recommendations by Yellowbox based off the office desking policy. This creates savings in number of lockers required and floor space.
Feedback from LSEG's Corporate Services Delivery Manager
Hi Vanessa,
I wanted to take a moment to say thank you and appreciate the outstanding product quality and service we have received from your company. From the very beginning it has been a pleasure working with you and your teams – the dedication and attention to details have not gone unnoticed and it’s clear that Yellowbox is committed to excellence.
With the recent enhancements within the platform it has made processes simpler, clearer and notably much easier for our teams to be able to handle the locker solution across the sites.
A big shout out to the YB engineering team (Ben Delaney and team) who have been working tirelessly in the background to make the system more intuitive and seamless.
It has been a pleasure working with you and I look forward to continuing our partnership. Thank you once again for your hard work and dedication.
Regards,
Service Delivery Manager - Corporate Systems
